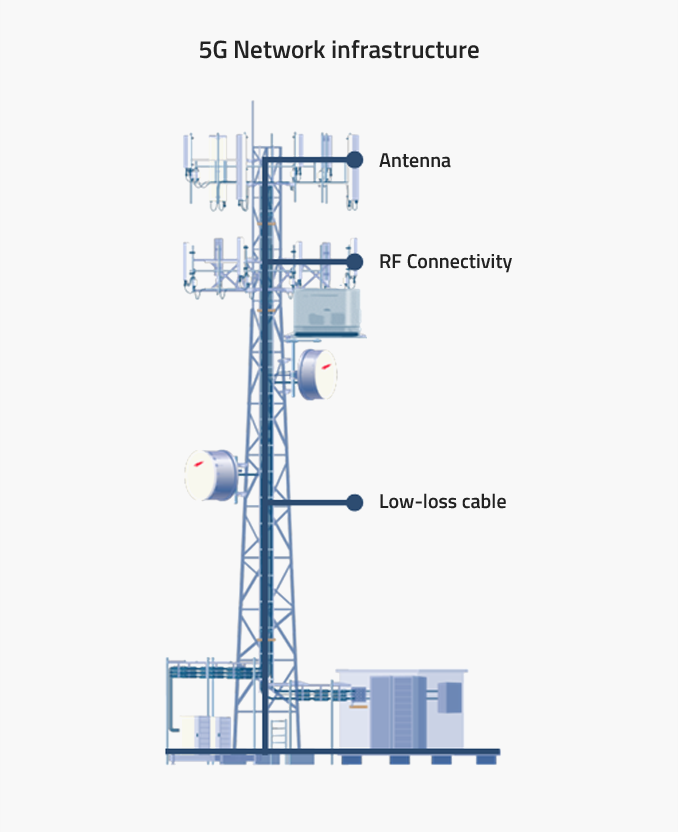

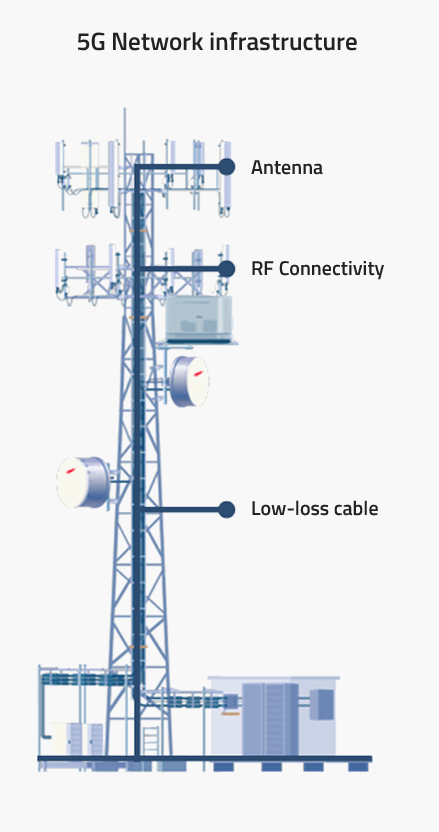

Antenna: · Massive MIMO Unit for 5G uses 3D beam and MU-MIMO, and plays integral role in sub-6GHz and 5G network by providing wide coverage and capacity performance.
Gigalane's Massive MIMO Unit supports all 5G network spectrum worldwide and aims to satisfy all customers' needs by offering various formfactors which can be deployed in diverse site requirements.

· Small cells are efficient in traffic management in small areas and this further empowers its popularity.
With increased demand for in/outdoor small cell equipment, Gigalane is able to fulfill all needs with our solutions.

Applied Products

Application

Network AP and small cell antenna module (~28GHz)
- Enterprise AP, LAA antenna, multi-carrier antenna, outdoor AP, etc.
Low-power IoT module (~ 6GHz)
- Signal, BLE antenna, etc.

Advantage

Design and simulation technology
- Optimization through antenna design and electromagnetic wave analysis (Ansys HFSS)
Small antenna design and optimization technology
- Performance realization by antenna type (PIFA, LDS, IMD, etc.)
Network antenna design and ultra-high frequency antenna design technology
- Structure design analysis and beam width adjustment for patch antenna, array antenna, etc.
Antenna development environment
- 3D chamber, antenna pattern routing equipment, etc.
Antennae and cable assembly modules in house production

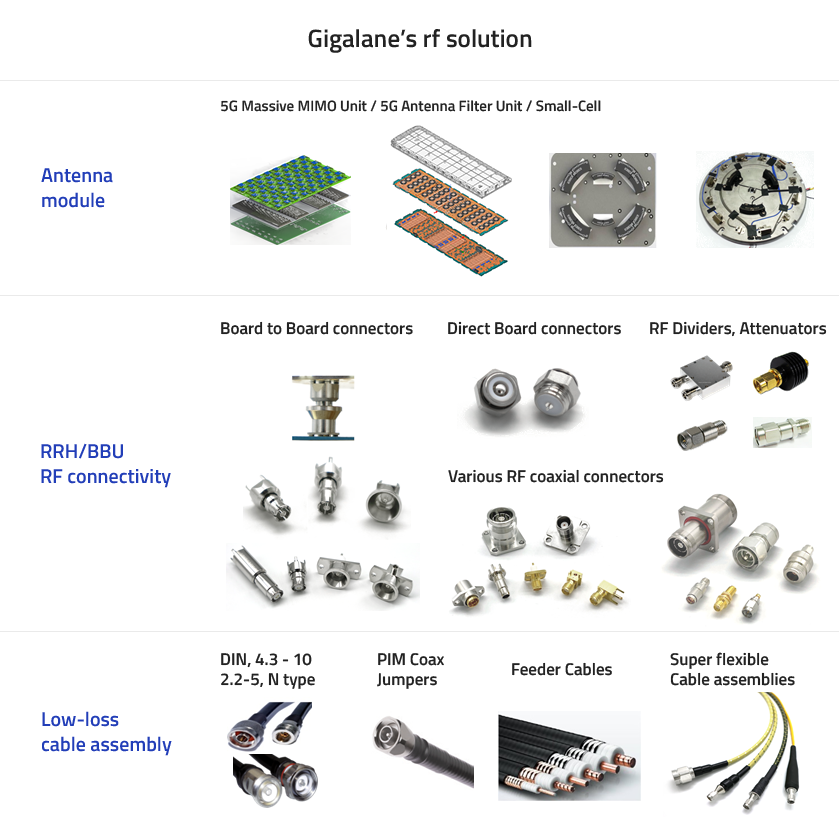

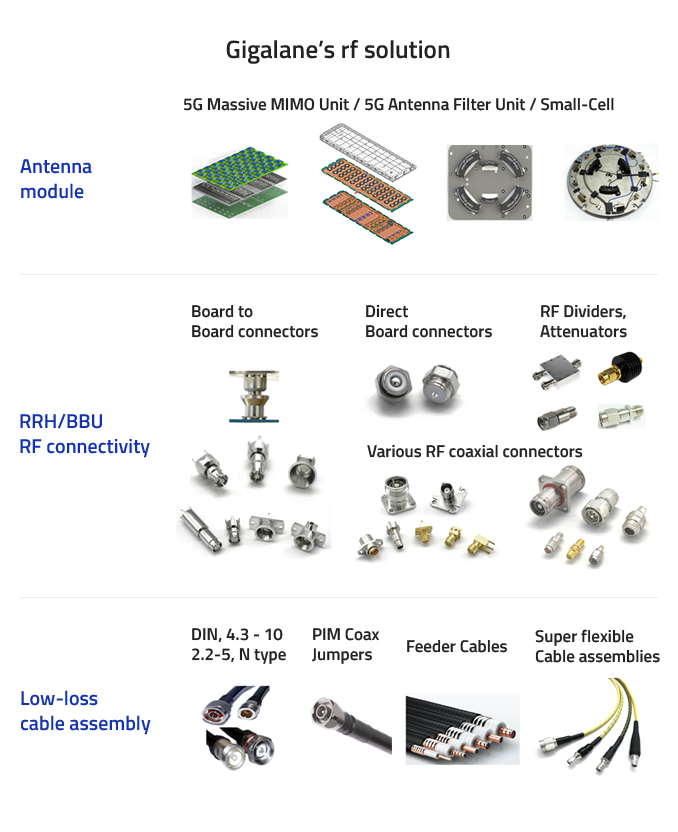

RRH/BBU Components: The small board to board connectors of Gigalane were developed for RF interconnect for ‘board to board’ and ‘board to module’.
This solution is perfect solution for complicated stack of board-to-board connection and its compact application.

Applied Products

Specification

Specification comparison	Item	GBB	Item	GDBC	Item	GSBB
Products	GBB		GDBC		GSBB
Products
Benefit and advantage	Low VSWR Wide radial working range Low PIMD		One Connector Path Low mating hieght		Small Size High Frequency Low PIMD
	Frequency	DC ~ 6GHz	Frequency	DC ~ 6GHz	Frequency	DC ~ 14GHz
	VSWR	1.25:1 @6GHz	VSWR	1.13:1 @3GHz 1.15:1 @6GHz	VSWR	1.22:1 @6GHz 1.30:1 @8.5GHz
	PIMD	-165dBc	PIMD	-150dBc	PIMD	-160dBc
	Power Rating	180W @2.7 GHz (CW)	Power Rating	120W @2.7 GHz (CW)	Power Rating	100W @2.7 GHz (CW)
	Axial Tolerance	±1mm	Axial Tolerance	±0.6mm	Axial Tolerance	±0.6mm
	Radial Tolerance	±4deg	Radial Tolerance	±4deg	Radial Tolerance	±4deg
	Area	6 X 6 ㎟	Area	Φ8mm	Area	3.8 X 3.8 ㎟
	Mating Height	Min. 13mm	Mating Height	Min. 7mm	Mating Height	Min. 10mm
	Finish	Suco Plated Ag Plated	Finish	Suco Plated Ag Plated	Finish	Suco Plated Ag Plated

Specification comparison	Item	GBB	Item	GDBC	Item	GSBB
Products	GBB		GDBC		GSBB
Products
Benefit and advantage	Low VSWR Wide radial working range Low PIMD		One Connector Path Low mating hieght		Small Size High Frequency Low PIMD
	Frequency	DC ~ 6GHz	Frequency	DC ~ 6GHz	Frequency	DC ~ 14GHz
	VSWR	1.25:1 @6GHz	VSWR	1.13:1 @3GHz 1.15:1 @6GHz	VSWR	1.22:1 @6GHz 1.30:1 @8.5GHz
	PIMD	-165dBc	PIMD	-150dBc	PIMD	-160dBc
	Power Rating	180W @2.7 GHz (CW)	Power Rating	120W @2.7 GHz (CW)	Power Rating	100W @2.7 GHz (CW)
	Axial Tolerance	±1mm	Axial Tolerance	±0.6mm	Axial Tolerance	±0.6mm
	Radial Tolerance	±4deg	Radial Tolerance	±4deg	Radial Tolerance	±4deg
	Area	6 X 6 ㎟	Area	Φ8mm	Area	3.8 X 3.8 ㎟
	Mating Height	Min. 13mm	Mating Height	Min. 7mm	Mating Height	Min. 10mm
	Finish	Suco Plated Ag Plated	Finish	Suco Plated Ag Plated	Finish	Suco Plated Ag Plated

Application

Advantage

High-frequency performance
- In 2015, it was the first and only product that met the qualifications for becoming the pool of 6Ghz frequency for global major companies.

- Performance ensured even in an incomplete joining of the board
Quality and reliability
- Quality and reliability ensured

- Lightweight by ultra-precision molding technology
Customized solution
- The comprehensive customized solution for make-to-order (frequency, power, working range, type, size, price, etc.)

Cables: The cable assemblies connecting external system to antenna should be able to meet tough environemtal requirement such as waterproof, rain proof, UV(Ultra-violet) Production, salt water, sany dust..etc. Also, as it is connected to antenna directly, low loss characteristics is very import.

Applied Products

Specification

Item	PIM Coax Jumpers & Feeder Cables
Frequency	DC ~ 6 GHz
Impedance	50 Ω
VSWR	1.20 : 1
Velocity Propagation	87% (5/8”) ~ 88% (1/2”) -160dBc
Intermodulation	(20W x 2 tone @1.8GHz)
Insulation Resistance	10,000 MΩ Min.
Working Voltage	1000 Vrms (5/8”) 500 Vrms (1/2”)
Connector type	N, 4.3-10, 4.1/9.5 (Mini-Din), 7/16 (DIN)

Item	2.2-5 connector
Frequency	DC ~ 20 GHz
Impedance	50 Ω
VSWR (Interface only)	1.035 : 1 (DC ~ 6GHz) 1.07 : 1 (6GHz ~ 10GHz) 1.22 : 1 (10GHz ~ 20GHz)
Screening effectiveness	DC to 3 GHz : ≥ 90 dB (tool-less types) DC to 6 GHz : ≥ 100 dB (Screw type)
Intermodulation	-165dBc (20W x 2 tone @1.8GHz)
Operating Power	250W @ 2GHz (@40℃)
Operation	100 mating cycles
Temperature range	- 40℃ ~ +85℃
Water tightness	IP68 (1hour @ 25M)

Item	4.3-10 connector
Frequency	DC ~ 12 GHz
Impedance	50 Ω
VSWR (Interface only)	1.04 : 1 (DC ~ 4GHz) 1.05 : 1 (DC ~ 12GHz)
Screening effectiveness	DC to 6 GHz : ≥ 120dB (Screw type) DC to 6 GHz : ≥ 80dB (Quick -lock)
Intermodulation	-160dBc (20W x 2 tone @1.8GHz)
Insulation Resistance	5,000 MΩ Min.
Center Contact Resistance	< 1 mΩ
Outer Contact Resistance	< 1 mΩ
Working Voltage	500 Vrms
