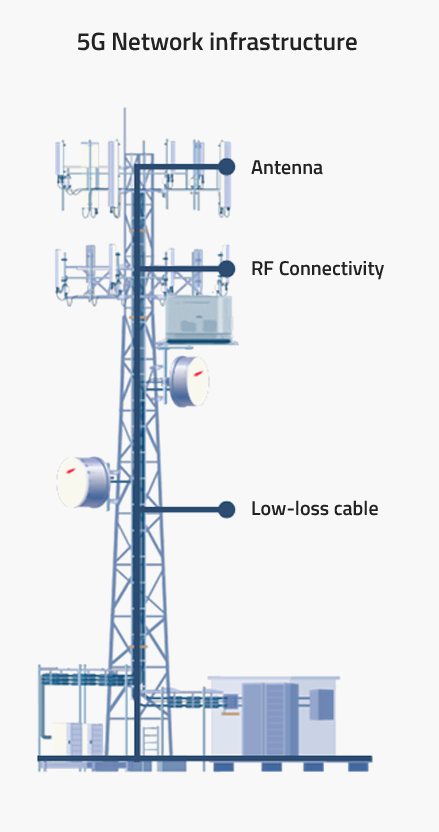

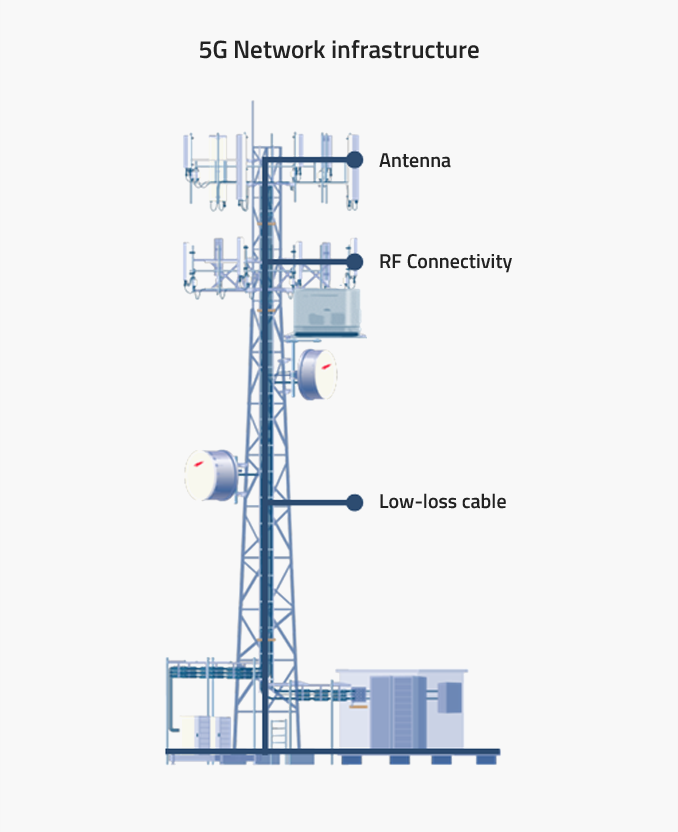

5G Network Infrastructure

5G Network Infrastructure

Gigalane持续提供新一代移动网络技术验证的天线模块、RF连接器、RF电缆组件及其他多个RF相互连接产品。
另外，Gigalane不仅提供符合第5代（5G）产品的RF性能和满足长期可靠性的产品，还在继续努力开发Beyond 5G、6G网络技术的新解决方案。

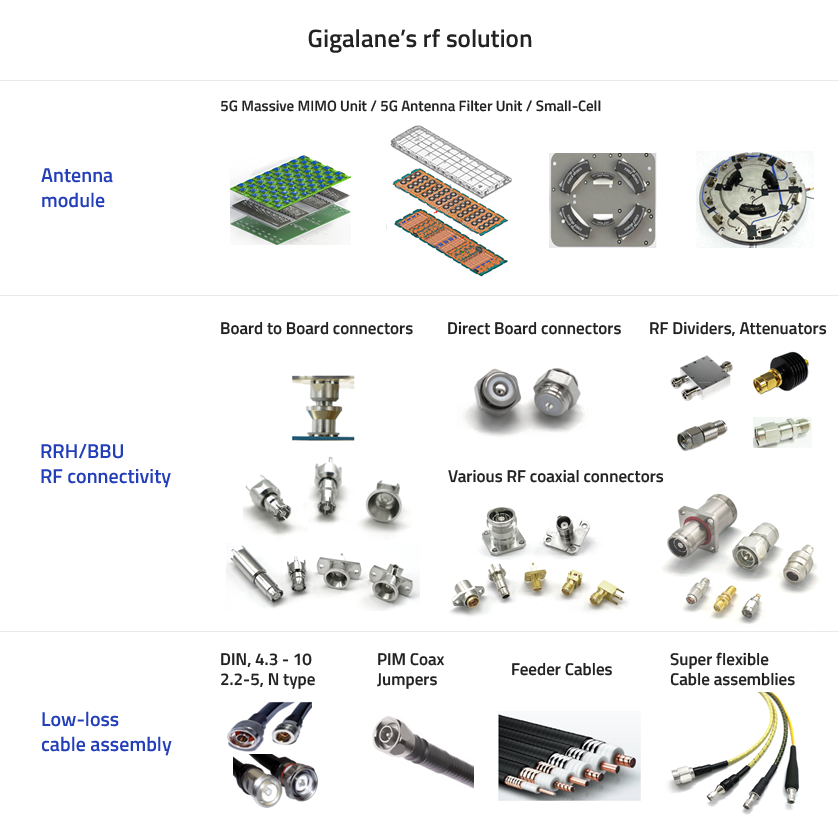

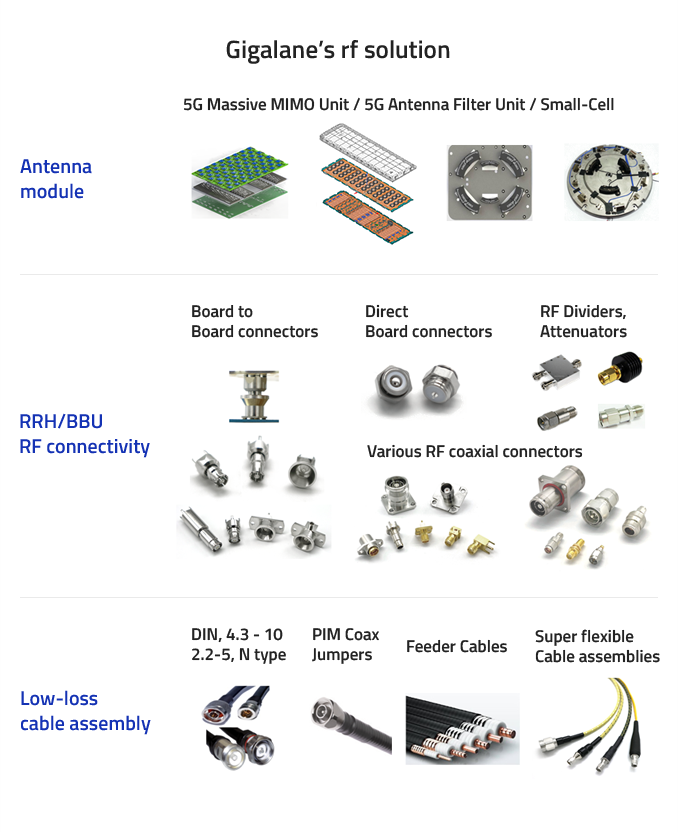

Related Products

Antenna
RRH/BBU Components
Cables

Antenna: · 5G用 Massive MIMO Uint使用3D光束和MU-MIMO，提供多种水平的覆盖率和容量性能，在sub- 6GHz及5G服务应用中发挥核心作用。
Gigalane的 Massive MIMO Unit是为了支持全世界所有定义的5G光谱，并提供在多种网站要求事项上最佳使用的多种形态因素，满足所有顾客的需求而制作。

另外，Small-Cell对狭小区域内的流量管理有效果，因此其区域的使用正在增加。
尤其随着in/out door对多种小型单元设备的需求增加，Gigalane拥有多种解决方案。

Applied Products

5G Massive MIMO Unit
5G Wide-Band
Outdoor AP (Directional)
Licensed Assisted Access
5G CPE _ BLE
Outdoor AP (Omni)
CBRS (Omni)

Application

网络AP及小型单元天线模块 (~ 28GHz)
- 企业AP、LAA天线、多功能载体天线、户外用AP等
低电力IoT模块 (~ 6GHz)
- 信号、BLE天线等;

Advantage

设计和Simulation技术
- 通过天线设计及电磁波解析达到最优化(Ansys HFSS)
小型天线设计和最优化技术
- 实现天线类型(PIFA, LDS,IMD等)的性能
网络天线设计及超高频天线设计技术
- 结构设计分析及Patch天线，阵列天线等束宽调节
具备开发天线的环境
- 3D chamber, Anntenna模式路由装置等
实现天线和Cable Ass'y Module自行生产

RRH/BBU Components: Gigalane的小型面板对面板连接器是为使用"面板对面板"及"板对模块"RF Internet而制作的。该解决方案是为面板间连接和紧凑应用的复杂堆叠排列而设计的完美解决方案。

Applied Products

GBB
(GigaLane Board to Board Connector)
GHBB
(GigaLane High-power Board to Board Connector)
GSBB
(GigaLane small-size Board to Board Connector)
GDBC
(GigaLane Direct Board Connector)

Specification

* 向左滚动查看完整表格

Specification comparison	Item	GBB	Item	GDBC	Item	GSBB
Products	GBB		GDBC		GSBB
Products
Benefit and advantage	Low VSWR Wide radial working range Low PIMD		One Connector Path Low mating hieght		Small Size High Frequency Low PIMD
	Frequency	DC ~ 6GHz	Frequency	DC ~ 6GHz	Frequency	DC ~ 14GHz
	VSWR	1.25:1 @6GHz	VSWR	1.13:1 @3GHz 1.15:1 @6GHz	VSWR	1.22:1 @6GHz 1.30:1 @8.5GHz
	PIMD	-165dBc	PIMD	-150dBc	PIMD	-160dBc
	Power Rating	180W @2.7 GHz (CW)	Power Rating	120W @2.7 GHz (CW)	Power Rating	100W @2.7 GHz (CW)
	Axial Tolerance	±1mm	Axial Tolerance	±0.6mm	Axial Tolerance	±0.6mm
	Radial Tolerance	±4deg	Radial Tolerance	±4deg	Radial Tolerance	±4deg
	Area	6 X 6 ㎟	Area	Φ8mm	Area	3.8 X 3.8 ㎟
	Mating Height	Min. 13mm	Mating Height	Min. 7mm	Mating Height	Min. 10mm
	Finish	Suco Plated Ag Plated	Finish	Suco Plated Ag Plated	Finish	Suco Plated Ag Plated

* 向左滚动查看完整表格

Specification comparison	Item	GBB	Item	GDBC	Item	GSBB
Products	GBB		GDBC		GSBB
Products
Benefit and advantage	Low VSWR Wide radial working range Low PIMD		One Connector Path Low mating hieght		Small Size High Frequency Low PIMD
	Frequency	DC ~ 6GHz	Frequency	DC ~ 6GHz	Frequency	DC ~ 14GHz
	VSWR	1.25:1 @6GHz	VSWR	1.13:1 @3GHz 1.15:1 @6GHz	VSWR	1.22:1 @6GHz 1.30:1 @8.5GHz
	PIMD	-165dBc	PIMD	-150dBc	PIMD	-160dBc
	Power Rating	180W @2.7 GHz (CW)	Power Rating	120W @2.7 GHz (CW)	Power Rating	100W @2.7 GHz (CW)
	Axial Tolerance	±1mm	Axial Tolerance	±0.6mm	Axial Tolerance	±0.6mm
	Radial Tolerance	±4deg	Radial Tolerance	±4deg	Radial Tolerance	±4deg
	Area	6 X 6 ㎟	Area	Φ8mm	Area	3.8 X 3.8 ㎟
	Mating Height	Min. 13mm	Mating Height	Min. 7mm	Mating Height	Min. 10mm
	Finish	Suco Plated Ag Plated	Finish	Suco Plated Ag Plated	Finish	Suco Plated Ag Plated

Application

RRH (Remote Radio Head)
Small Cell
RU+DU
MMU (Massive MIMO Unit)
Test Equipment
Filter+AMP
AMP+Antenna

Advantage

高频性能
- 2015 年以 6 Ghz频率通过全球专业企业完整资格认证的首个也是唯一的一款产品

- 在面板未完成的接合处也能保障性能
质量及可靠性
- 保证质量及可靠性，

- 采用超精密成形技术的轻量
定制型解决方案
- 整体范围的定制型解决方案(根据客户要求进行频率、电力、作业范围、类型、大小及价格的定制)

Cables: 作为连接外部系统与天线之间的外置型电缆装配体，必须满足防水、防雨、UV(Ultra-Violet)、盐水、沙尘等严苛的环境要求。并且因为直接与天线连接，所以Low-loss特性非常重要。
利用Feeder电缆和N,DIN,4.3-10连接器的PIM Coax jumper等的giga lane装配电缆，在外部环境中满足高可靠性、低损耗的要求。

Applied Products

PIM Jumper & Feeder cables
2.2-5 Connector
4.3-10 Connector

Specification

Item	PIM Coax Jumpers & Feeder Cables
Frequency	DC ~ 6 GHz
Impedance	50 Ω
VSWR	1.20 : 1
Velocity Propagation	87% (5/8”) ~ 88% (1/2”) -160dBc
Intermodulation	(20W x 2 tone @1.8GHz)
Insulation Resistance	10,000 MΩ Min.
Working Voltage	1000 Vrms (5/8”) 500 Vrms (1/2”)
Connector type	N, 4.3-10, 4.1/9.5 (Mini-Din), 7/16 (DIN)

Item	2.2-5 connector
Frequency	DC ~ 20 GHz
Impedance	50 Ω
VSWR (Interface only)	1.035 : 1 (DC ~ 6GHz) 1.07 : 1 (6GHz ~ 10GHz) 1.22 : 1 (10GHz ~ 20GHz)
Screening effectiveness	DC to 3 GHz : ≥ 90 dB (tool-less types) DC to 6 GHz : ≥ 100 dB (Screw type)
Intermodulation	-165dBc (20W x 2 tone @1.8GHz)
Operating Power	250W @ 2GHz (@40℃)
Operation	100 mating cycles
Temperature range	- 40℃ ~ +85℃
Water tightness	IP68 (1hour @ 25M)

Item	4.3-10 connector
Frequency	DC ~ 12 GHz
Impedance	50 Ω
VSWR (Interface only)	1.04 : 1 (DC ~ 4GHz) 1.05 : 1 (DC ~ 12GHz)
Screening effectiveness	DC to 6 GHz : ≥ 120dB (Screw type) DC to 6 GHz : ≥ 80dB (Quick -lock)
Intermodulation	-160dBc (20W x 2 tone @1.8GHz)
Insulation Resistance	5,000 MΩ Min.
Center Contact Resistance	< 1 mΩ
Outer Contact Resistance	< 1 mΩ
Working Voltage	500 Vrms

Application

PIMD Measurement
Outdoor antenna installation

Advantage

通过高频优化设计方法实现高频到Low-loss
适合外置型的设计应用
满足 RoHS认证与高品质要求
按照客户要求的类型进行定制
